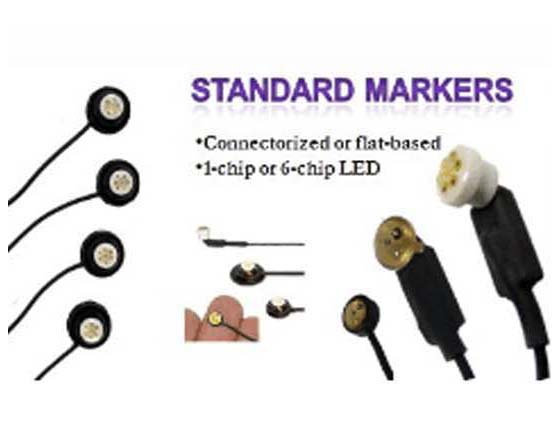

표준
LED 마-커
Standard LED Markers
These are the standard LED markers which a
Visualeye tracker can capture. They are packaged in different ways for
application conveniences. The flat-based versions are intended for direct
attachment to the skin with double-sided tapes or medical adhesive. The
Velcro-based are for attachment to Velcro-compatible suits or wraps. The
multi-chip LEDs are intended for longer distance larger motion sensing, while
the single-chip LEDs are for applications which require higher capture
accuracy. | | |
 |
|

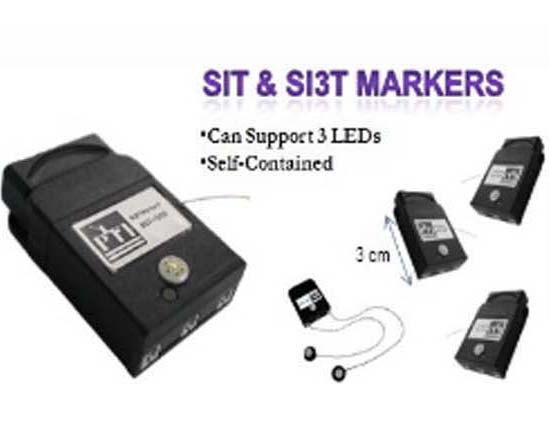

SITMarker - Completely Wireless
Marker
This is the latest completely
wireless intelligent marker. It consists of a radio receiver, a
micro-controller, and a multi-chip LED. To operate it, simply plug in a battery.
It comes with a built-in fixed marker ID for flawless identification. The
battery is self-protected to prevent from over-depletion or over-charging. It
combines the best features of the passive and the active optical motion capture
marker technologies.
(Size: 26 x 41 x
8.5mm)
| | |
|
|

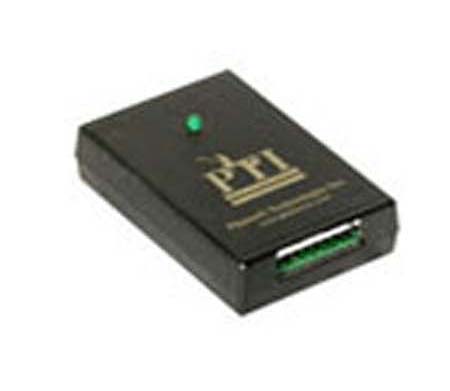

타겟 컨트롤모듈32(TCM32)
Target Control Module 32 (TCM32)
This TCM can power and control up to 32 standard LED
markers. It can be powered by a battery pack or a DC power convertor. Its green
indicator will flash whenever the power supply voltage is below normal, or when
it detects that a LED's connection is reversed.
(Size: 61 x 57 x 20mm)
| |
 |
|

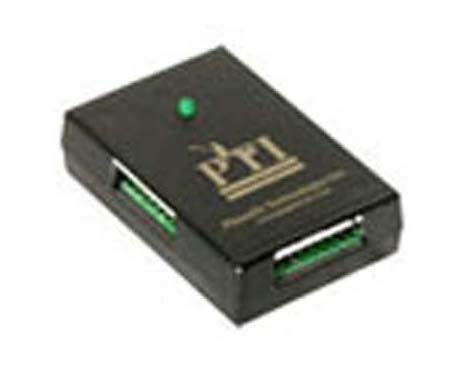

타겟
컨트롤모듈 16(TCM16)
Target Control Module 16 (TCM16)
This TCM can power and control up to 16 standard LED
markers. The 16 channels can be assigned to occupy either 1-16, 17-32, 33-48 or
49-64 LEDID banks. The high compactness makes it ideal for wearing around a
wrist for fingers motion capture or similar applications. It comes in two
versions, one for operating as part of a standard marker system, the other can
be used in conjunction with a SWMarker system to reduce the overall
wiring.
(Size: 61 x 41 x 16.5mm)
| | |
|
|
SI3TMarker
This
is a SITMarker with two more multi-chip LEDs connected to its two
side-connectors. All three LEDs will have their own distinct marker IDs. This
three-LED intelligent self-identified marker is convenient for capturing the
6DOF information of an object. It can also be cost-effectively used as three
independent markers. Note that the original center LED can also be replaced by a
third LED on short extension wire if desired.
(Size: 26 x 41 x
8.5mm)
(Extension Wire Length: 15cm)
| |
 |
SIM Transmitter
This radio transmitter is for operation with the SIMarkers.
It operates just like the regular marker transmitter, except on a different
radio
frequency.
| | |
|
|
|

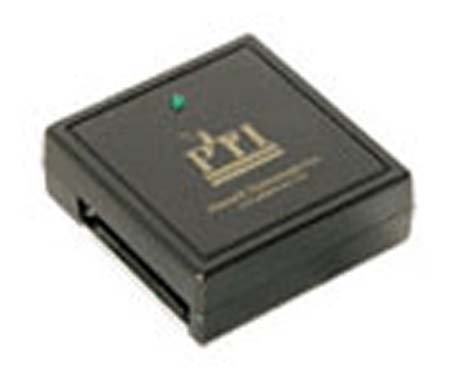

미니 타겟 컨트롤모듈(TCM8)
Mini Target Control Module
(TCM8)
This TCM can power and control up to
8 standard LED markers. However, each marker will adopt eight distinct marker
IDs. Whenever any of the IDs is enabled the marker will flash, this makes it
possible to be captured at a different frequency than other markers. The small
size and light weight of the TCM allow for applications on small animals, props,
wrists, the head, or for operating a VZLaser laser pointer.
(Size: 61 x 41 x
16.5mm
| |
|
|
Tetherless Marker Control
Transmitter
This is for tetherless
operation of a standard LED marker system or a SWMarker system. It broadcasts
the control signals required for controlling the markers. A matching receiver is
required for receiving the signals. Thus a transmitter-receiver pair serves as a
'virtual wire' which replaces an otherwise required tether cable between the
tracker and a capture subject and allows the subject to move freely.
| | |
|
SITChgr8 - Battery
Charger
This constant-current
constant-voltage battery charger can simultaneously charge up to eight batteries
for use by the SITMarkers.
|
|
|
|
NEW!
SWMarker – Semi-Wireless Marker
This intelligent marker system will reduce up to 90% of the
wiring requirement compared to the Standard LED Marker system. Each SWMarker
comes with a distinct built-in ID for flawless marker identification, and is
powered via a wire-pair by a half-size battery block. The battery block can
power up to three wire-pairs and a radio receiver for tetherless operation. Each
wire-pair can support at least ten SWMarkers. The wire-pair is long enough that
some slacks can be given between adjacent SWMarkers so that one
battery-wire-marker set can be used for many applications. In case necessary,
the markers can still be moved along the wire-pair to suit an
application.
(Marker Size: 19 x 18 x 8mm)
(Battery Size: 65 x 31 x 17mm)
(Receiver Size: 53 x 26 x
10mm)
| | |
 |
|
Tetherless Marker Control
Receiver
This device is for receiving the
marker control signals broadcast by a matching transmitter so that a standard
LED marker system or a SWMarker system can be controlled without an otherwise
required tether cable between the tracker and a capture subject.
(Receiver
Size: 53 x 26 x
10mm)
| | |
 |
Finger Motion Capture Gloves
Intricate finger and hand motions can be captured with this
special glove pair. Made with stretchable Velcro-compatible fabric on the back
side and mesh material on the palm side for sensitive touch, this glove set
allows tiny Velcro based markers to be easily attached to nearly anywhere
required to minimize occlusion and allow the highly complex finger motions to be
captured. | | |
 |
VZSuit
This
two-piece stretchable Lycra motion capture suit is completely Velcro-compatible
(except for the armpit areas). It allows for free unrestricted acting motions.
The actor/ performer simply slips into the suit and is ready to begin motion
capture. The top piece is zippered on the front for easy wearing. The suit may
come complete with TCM(s) and LED markers strategically placed for optimal
full-body motion capture if desired. For applications which require unique
marker placements, custom-designed suits may be ordered. The VZSuit is designed
for quick and easy arrangement of the LED markers for optimal capture
performance and easy suit cleaning. Any wiring required can be covered with
removable Velcro
strips. | | |
|
|
|
VZProbe Contact
Digitizer
This is a stick device to
facilitate digitizing the 3D position of a point in space or on an object. It
can also be used for establishing a coordinate reference frame. By outfitting it
with an appropriate tip, it can even be used to digitize surfaces not in the
line-of-sight of the tracker(s), for example the underside of a car or the
inside of a
cup.
| | |
| |
 |
|
Tracker Clamp
This heavy-duty three-piece stainless steel clamp will hold
a Visualeyez system tracker sturdily for permanent or semi-permanent
mounting on a rigid surface or a truss. It is used whenever a tripod may be too
intrusive.
| | |
 |
|
Truss Mount Set
This heavy-duty mounting assembly, complete with a Tracker
Clamp, will hold a Visualeyeztracker sturdily for permanent or
semi-permanent mounting on a 42~52mm truss. The ball joint will allow the
mounted tracker to be tilted and turned to any orientation.
| | |
 |
Flat Wall-Mount
Set
A Visualeyez tracker can also
be mounted on a flat wall using this heavy-duty metal assembly. It consists of
two flat end-plates, each with a ball joint, interconnected by an extension rod,
and completed by a Tracker Clamp. The mounted tracker can be turned and tilted
to point in practically any
orientation. | |
 |
|
Tripod-L
This is a lower cost but still heavy duty
industrial tripod for mounting a tracker. It comes with one extendable leg for
tilting, and with one adaptor to join with a Tracker Clamp for holding a
tracker. This is the tripod that comes with the ‘–SM’ series of the
Visualeye
systems.
| | |
| |
Special and Custom Accessories
| |
 |
|
Motion Capture Vest
This is a Velcro-compatible vest for easy attachment
of markers for upper body motion capture
applications.
| | |
 |
|
VZLaser Remote 3D Digitizer
This is an optional, handheld, synchronized,
laser-pointer that is used for digitizing the 3D shapes and sizes of objects for
modeling, research or reverse engineering applications. It operates just like an
LED marker, except it comes with a push-button switch for activating the
digitization only when desired. Since no physical contact is required, the
VZLaser can be used to digitize even non-rigid objects such as a dress or soft
tissue.
| | | |
